Description

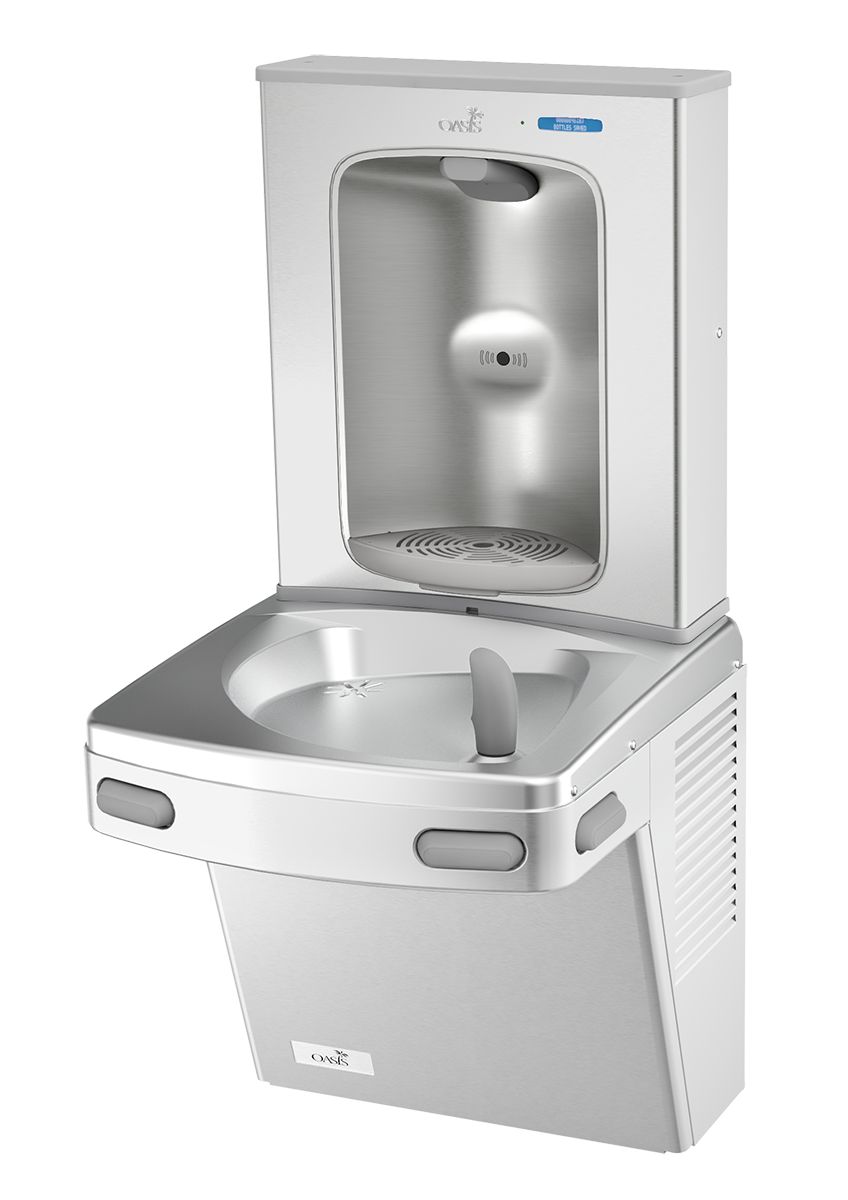

Wall-mounted, mains-connected, combination unit
The VersaFiller Series comes in a wide range of configurations, including single and split-level designs, both of which feature bubblers and bottle fillers. With an optional upgrade to a vandal-resistant design, the VersaFiller is perfect for schools and other public areas. All VersaFiller fountains use R-134a refrigerant and have an efficient, high performing refrigeration system.
All Oasis bottle fillers are made with proprietary Freshield technology. Freshield harnesses the natural bacteria-fighting power of silver by infusing it into a poly compound on moulded parts of the alcoves.
Key Features
- Stainless steel top and heavy duty frame with galvanized or stainless steel option.
- High efficiency cooling system and refrigerant R-134a.
- Built-in 100 micron strainer stops particles before they enter the waterway.
- Waterways are lead free in materials and construction.
- External stream height adjustment on bubblers

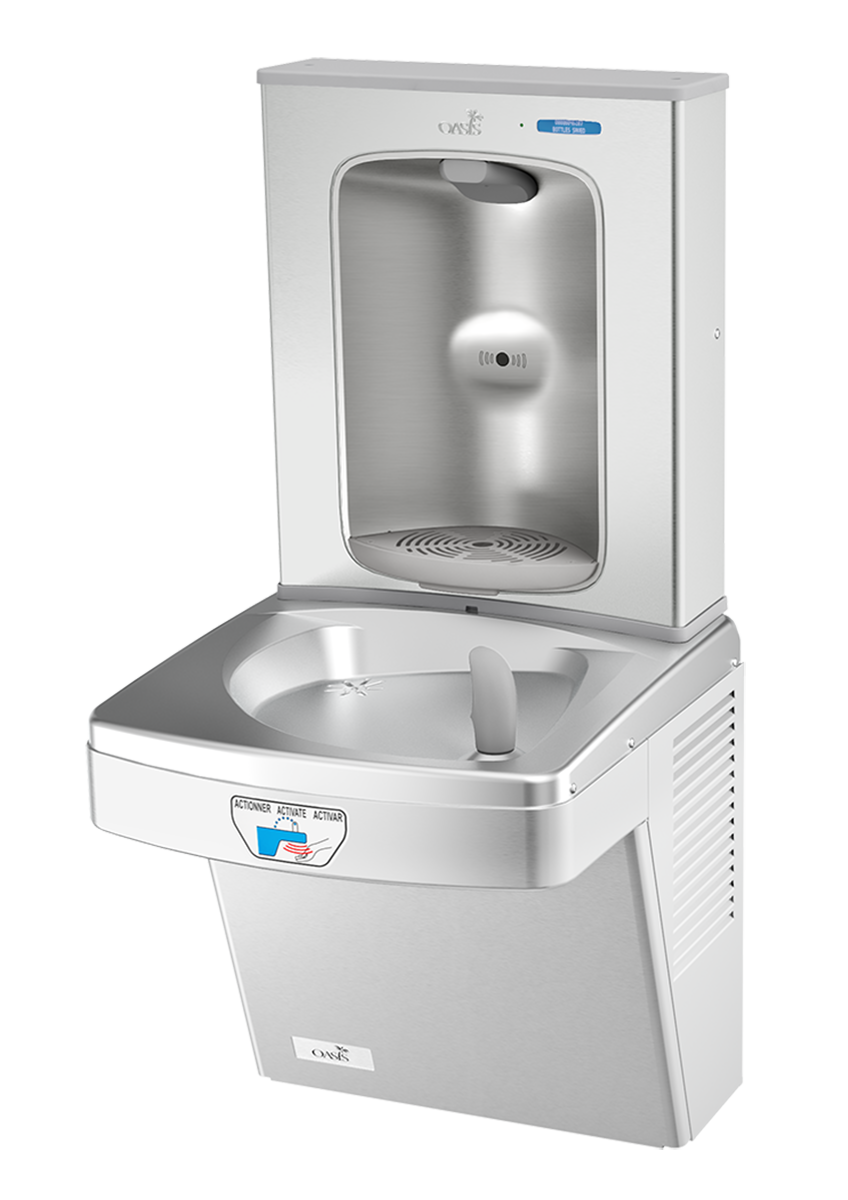

- Hands free bottle filler with programmable shut off timer (hands free version only).
- Integrated bottle counter and filter monitor.
Specifications
| Water Connections | Inlet: 1/2” BSP connector, Drain: 40mm Female Socket (Not trapped) |
|---|---|
| Cooling Performance | 60 LPH – Rated Capacity & Base Rate – (10°C in 21°C amb. temp.) |
| Exterior | Antimicrobial ABS Plastic, Brushed Stainless Steel |
| Chassis | Heavy Duty Galvanised Steel |
| Warranty | 1 Year Full, 2 Years Parts Only |
| Certifications | WaterMark, ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC, RoHS) |
| Electrical | 220-240 V, 50/60 Hz |
| Weight (Packed) | 31kg |
| Dimensions (Packed) | AC-PV8EBFY-ASM – 960(H) x 413(W) x 473(D) AC-P8EBFTY-ASM – 960(H) x 413(W) x 473(D) |
Instructions
Unpack
- After unpacking the water fountain, wipe with a soft cloth. Check the unit for evidence of rough handling.
- Place the machine on a hard, flat surface. Make certain the unit is level. The unit should not be close to sources of heat, otherwise performance may be affected.
Install
- The installation must be in accordance with AS/NZS 3500.1 and AS/NZS 3500.2. Pipe jointing is a trade skill and Water Cooler Shop recommends this process is performed by qualified personnel only.
- View the User Manual for full mounting, install and drainage installation instructions.
Enjoy
- Enjoy your freshly chilled, filtered water.
